OEM Diesel Engine - Material Recommendations

Interface Solution, Inc. Offers value grade materials designed to meet the demanding requirements of world-class diesel engine manufactureers. These materials deliever the long-term durability required to meet ever-increasing mileage-warranty expectation, and are all produced to QS-9000 Quality Standards. These value grade materials provide effective, lower-cost, alternative sealing solutions for diesel applications.

OEM Gasoline Engine	Value Grade	Lower Cost Alternative	Economical

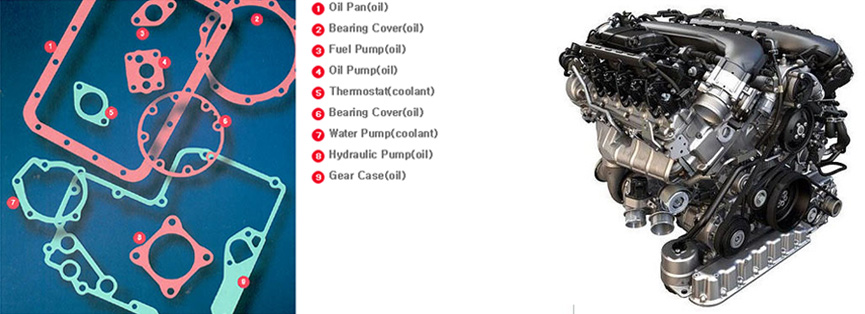

Oil Applications : (Oil Pan, Rear Main Bearing Retainner, Front Cover, Oil Pick-up Tube)	MP-15	PF-4S	TS-9013
Fuel Applications : (Intake Manifold, Caburetor, Throttle Body)	CMP-4000	PF-4N	N-8092
Air Applications : (Intake Manifold, Air Filter, Caburetor)	CMP-4000	MP-2N	N-8092
Collant Applications : (Water Pump, Water Pump Inlet)	CMP-4000	PF-4N	TN-9015

In the OEM diesel market, correctly selecting a gasket material requires comparison based on the knowledge that each materials is designed to perform at a certain level. Most important is that a material's performance capabilities meet or exceed the application's engine requirements. As with other applications, the final material selection should be based on application testing.

Gasket Materials	Density(gm/cc)	Bider Type	Maximum Intermittent Temperature(℃)	Recommended Fluids to Seal	Minimum Tensile Strenth AMD(MPa)	Minimum Flange Pressure to Seal Oil @ 4 Bar(MPa)
MP-15	1.54	Neoprene	205	Oil,Air,Coolant	10.34	3.4
CMP-4000	1.60	NBR	350	Oil,Air,Coolant,Fuel	23.00	4.8
PF-4N	1.44	NBR	290	Oil,Air,Coolant,Fuel	8.97	10.3
PF-4S	1.44	SBR	290	Oil,Air,Coolant	8.62	13.8
MP-2N	1.35	NBR	205	Oil,Air,Coolant,Fuel	8.28	6.9
TS-9013	1.36	SBR	290	Oil,Air,Coolant	8.28	10.3
N-8092	1.20	NBR	180	Oil,Air,Coolant,Fuel	11.03	8.6
TN-9015	1.28	NBR	290	Oil,Coolant,Fuel	10.34	10.3
