OEM Gasoline Engine - Material Recommendations

Interface Solution, Inc는 최근의 가솔린엔진의 엄격한 요구사항들을 충족하도록 개발된 고품질원자재를 제안해드립니다. 제안하는 원자재는 가솔린엔진 제조사가 기대하는 워런티나 내구성을 만족시켜 드립니다. 그리고 모든 제품은 QS-9000 품질표준에 따라 생산됩니다. 이러한 고품질 원자재는 가솔린엔진 애플리케이션에서 고효율, 저비용의 실링솔루션을 제공합니다.

OEM Gasoline Engine	Value Grade	Lower Cost Alternative	Economical

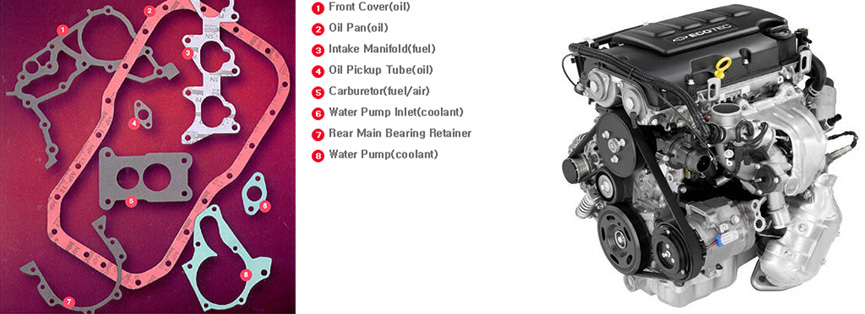

Oil Applications : (Oil Pan, Rear Main Bearing Retainner, Front Cover, Oil Pick-up Tube)	MP-15	PF-6S	TS-9013
Fuel Applications : (Intake Manifold, Caburetor)	CMP-4000	MP-2N	N-8092
Air Applications : (Intake Manifold, Caburetor)	PF-4N	MP-2N	N-8092
Coolant Applications : (Water Pump, Water Pump Inlet)	CMP-4000	PF-4N	N-8092

As in other applications, correctly specifying a gasket material for gasoline engines requires comparison based on the knowledge that each materials is designed to perform at a certain level. Most important is that a material's performance capabilities meet or exceed the application's engine requirements. Here, too, the final material selection should be based on application testing.

Gasket Materials	Density(gm/cc)	Bider Type	Maximum Intermittent Temperature(℃)	Recommended Fluids to Seal	Minimum Tensile Strenth AMD(MPa)	Minimum Flange Pressure to Seal Oil @ 4 Bar(MPa)
MP-15	1.54	Neoprene	205	Oil,Air,Coolant	10.34	3.4
CMP-4000	1.60	NBR	350	Oil,Air,Coolant,Fuel	23.00	4.8
PF-4N	1.44	NBR	290	Oil,Air,Coolant,Fuel	8.97	10.3
PF-6S	1.28	SBR	230	Oil,Air,Coolant	8.28	20.7
MP-2N	1.35	NBR	205	Oil,Air,Coolant,Fuel	8.28	6.9
TS-9013	1.36	SBR	290	Oil,Air,Coolant	8.28	10.3
N-8092	1.20	NBR	180	Oil,Air,Coolant,Fuel	11.03	8.6
